Auto repair businesses succeed when they balance two critical goals: smooth workflows and positive customer experiences. The most productive facilities we work with understand that smart design decisions shape both.
Strategic facility planning addresses key zones including service bays, reception areas, parking, and storage spaces. The foundation involves thoughtful space allocation, safety protocols, clean waiting areas, and organized tool systems that support both technician productivity and customer satisfaction.
How Should You Plan Layout, Space, And Equipment To Speed Workflow?

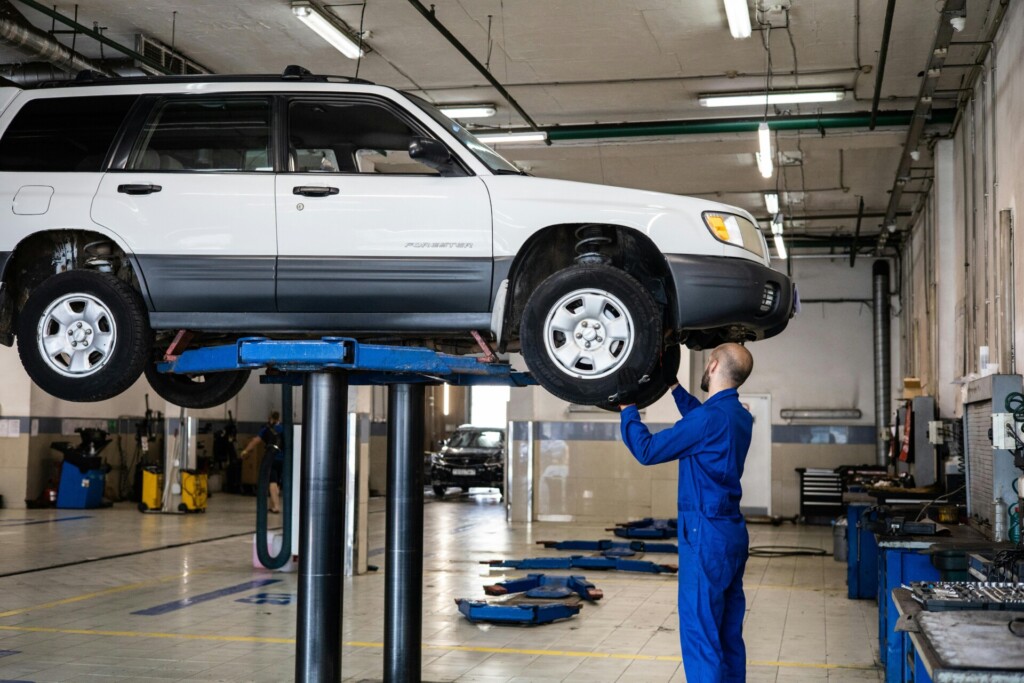

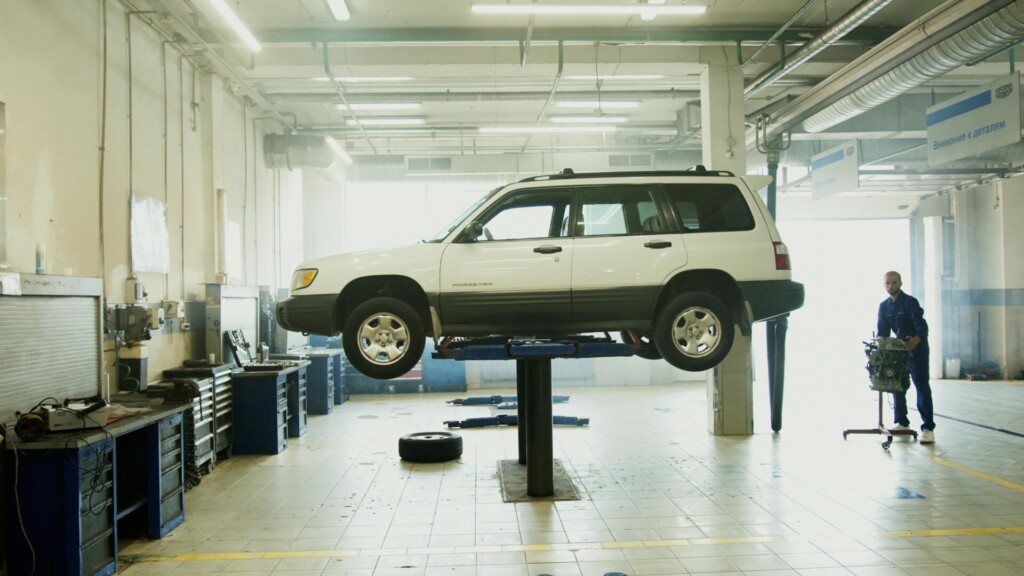

Effective auto shop layout starts with proper lift positioning. We position two-post lifts with approximately 15 feet of horizontal space, placing one arm flush against a wall while positioning the other roughly 11 feet away. This configuration allows adequate clearance for any repair job while maintaining efficient space usage.
Adjacent to lift arms, we maintain four feet of clear space for toolbox access. This clearance enables technicians to maneuver equipment around vehicle rear ends without obstruction. When working on multiple vehicles simultaneously, this spacing prevents workflow bottlenecks during peak hours.
Space Allocation For Core Operations
Small shops benefit from dimensions around 23×60 feet, which accommodates essential functions without wasted square footage. We allocate dedicated zones for parking and pull-out lanes, ensuring vehicles move smoothly from arrival to service completion. Vehicle work areas receive priority positioning near overhead doors for optimal access.
Tool storage and parts inventory require strategic placement within technician reach. We position frequently used equipment on multiple sides of service bays, reducing walking time during repairs. Customer waiting zones need separation from work areas while maintaining visual connection for transparency.
Center Aisle And Access Planning

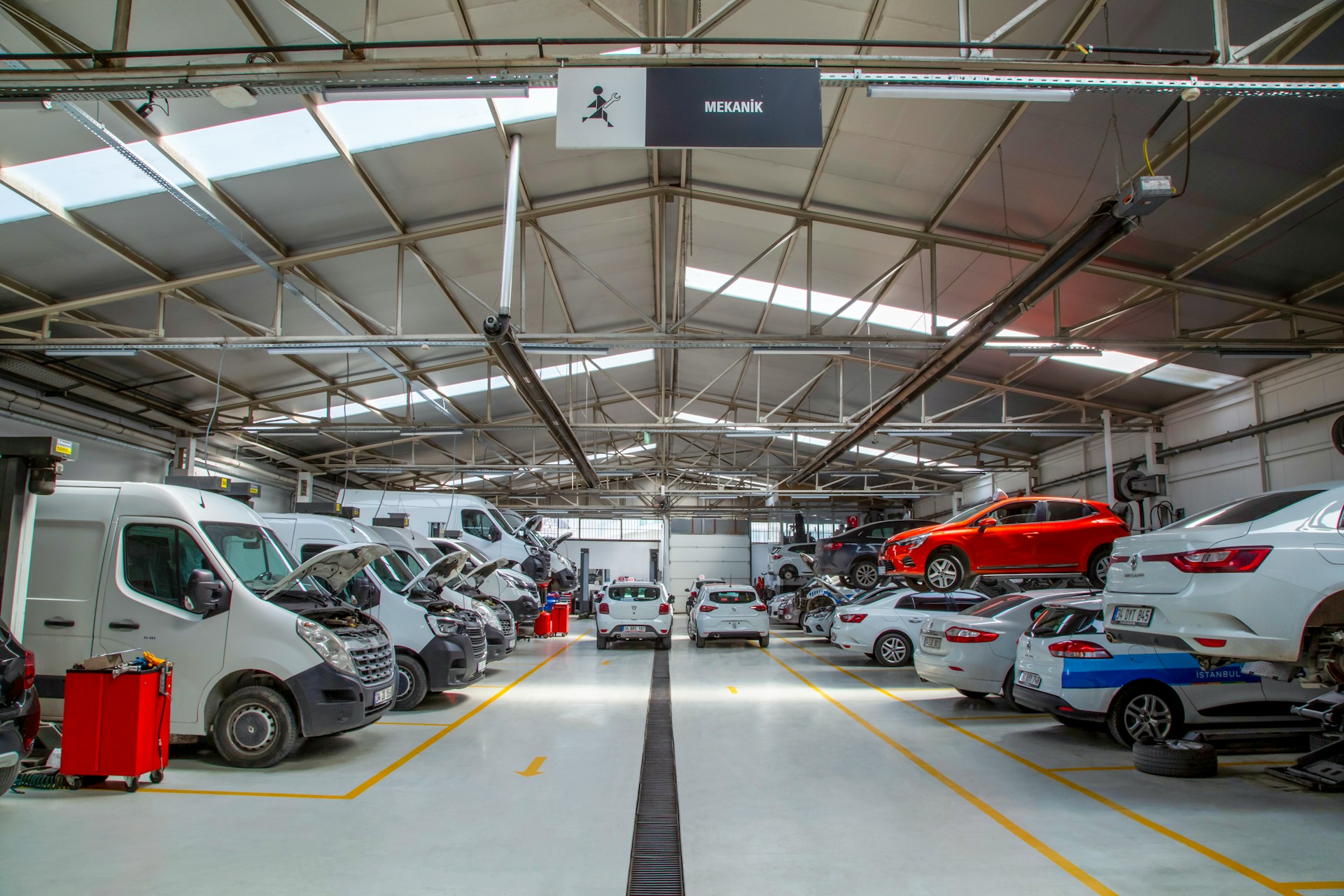

We maintain center aisles of approximately 25 feet (7.5 meters) to accommodate vehicle movement and emergency access. Wide aisles prevent collisions between moving vehicles and reduce door cycling, which impacts climate control efficiency during temperature extremes. Multiple overhead doors provide flexible entry and exit options for different vehicle sizes.
Each service bay receives designation for specific repair types. We establish dedicated bays for routine maintenance, diagnostic work, and specialized services. One bay stays equipped for electric vehicle servicing with appropriate lifts and safety equipment, as standard lifts cannot handle EVs due to their heavy batteries and larger frames.
Vertical Space Optimization
Ceiling height maximization through shelving, storage racks, and ceiling-mounted hoists increases usable space without expanding floor area. We install wall-mounted tool storage systems that keep equipment organized and accessible. Vertical solutions work particularly well for seasonal items and backup inventory.
Awkward corners and unused spaces convert into closed storage areas, keeping work zones uncluttered. Multi-function equipment reduces footprint while maintaining capability across different repair types. When outdoor space exists, we utilize it for overflow parking or weather-appropriate work operations.
Modular Construction Considerations
Steel building structures offer flexibility for growing operations. A 50×100-foot steel building accommodates three or more service bays with room for expansion. Modular construction allows customization to specific workflow requirements while maintaining cost efficiency compared to traditional construction methods.
Pre-engineered buildings expedite construction timelines and provide clear span interiors without load-bearing columns that interfere with vehicle movement. This approach supports future reconfiguration as service offerings evolve or capacity requirements change.
How Do You Design For Safety Without Slowing Production?
Auto repair shops face serious safety hazards that can slow production and endanger workers. Heavy equipment poses crushing risks. Vehicles on lifts create overhead dangers. Fire risks emerge from welding, grinding, and flammable materials throughout the workspace.
We position personal protective equipment strategically near each work area where technicians need it most. Safety glasses, hard hats, and steel-toed boots must be accessible without interrupting repair workflows. This placement reduces the time workers spend retrieving protective gear and increases compliance rates.
Control Access And Maintain Clear Pathways
Customer access control prevents injuries and liability issues while protecting trade practices. We design physical barriers that guide customers to appropriate areas without creating bottlenecks. Clear sight lines from reception areas allow staff to monitor both customer and work zones effectively.
Emergency egress paths require constant attention during construction planning. OSHA standards mandate at least two unobstructed fire exits, and we ensure these routes remain clear during daily operations. Wide aisles between service bays serve dual purposes: they speed equipment movement during normal work and provide evacuation routes during emergencies.
Proper pathway width prevents collisions between rolling toolboxes, hydraulic jacks, and personnel. We maintain center aisles wide enough for two technicians with equipment to pass safely. This spacing reduces accidents and keeps work flowing smoothly.
Implement Strategic Lighting And Fire Prevention
Strong, even lighting throughout work areas reduces trip hazards and improves accuracy on detailed repairs. We install lighting that eliminates shadows around lift areas and underneath vehicles. Proper illumination helps technicians spot potential safety issues before they become problems.
Flammable storage requires separation from heat sources and spark-generating equipment. We locate paint, solvents, and cleaning chemicals in dedicated storage areas away from welding stations and electrical panels. Proper ventilation in these storage zones prevents vapor accumulation that could ignite.
Fire extinguisher placement follows OSHA guidelines for accessibility and coverage areas. We position extinguishers within 75 feet of any point in the shop and mount them at proper heights for quick access. Regular inspection schedules ensure extinguishers remain charged and functional when needed.
Design Spacing That Supports Both Safety And Efficiency
Bay spacing affects both safety protocols and production flow. We leave adequate space between service bays to prevent equipment interference and support rapid evacuation if needed. This spacing also allows multiple technicians to work simultaneously without crowding.
Clear egress paths connect all work areas to emergency exits without requiring workers to navigate around equipment or through other bays. These pathways remain marked and unobstructed even during busy periods when tools and parts may accumulate in work areas.
Which Organization And Technology Choices Boost Shop Efficiency?
We identify bottlenecks by walking through each repair step and timing actual work versus wait periods. Technicians often waste minutes searching for tools or waiting for parts approval. These delays compound quickly across multiple bays during peak hours.
Clear task assignment eliminates confusion about who handles specific responsibilities. We post role charts at each workstation showing which technician manages diagnostics, who coordinates parts ordering, and who communicates with customers. This prevents duplicate work and ensures nothing falls through cracks.
Ergonomic Workstations Reduce Fatigue And Increase Speed
Ergonomic furniture directly impacts how fast technicians complete tasks. Adjustable work surfaces let mechanics maintain proper posture whether they’re working under hoods or beneath vehicles. Anti-fatigue mats reduce strain during long diagnostic sessions.
Tool organization around workstations cuts unnecessary movement. We stage frequently used equipment on multiple sides of each bay so technicians can grab what they need without walking across the shop. Socket sets, diagnostic scanners, and fluid dispensers stay within arm’s reach of the primary work area.
Standardized Bay Configurations Streamline Operations
Every service bay follows the same basic setup pattern. Air lines, electrical connections, and tool storage occupy identical positions across all work areas. This consistency means any technician can work efficiently in any bay without learning new layouts.
We position staged tools systematically around each lift. Common hand tools occupy the left side, while specialty equipment stays on the right. Parts staging areas sit directly behind each bay with clear sightlines to the vehicle. This arrangement reduces walking time and keeps work flowing smoothly.
Digital Systems Eliminate Paper Bottlenecks
Computerized repair orders replace handwritten work tickets that often get lost or become unreadable. Digital systems let service advisors update job status instantly while technicians access current information from tablets in each bay. Real-time communication prevents delays caused by miscommunication.
Inventory management software tracks stock levels automatically and triggers reorder alerts before parts run out. Barcode scanning automates the tracking of tools, parts, and vehicle service histories, saving time and reducing errors for repair technicians. Scanning part numbers during installation creates accurate usage records and identifies which items need restocking.
Strategic Placement Of Essential Items
Safety gear and common tools belong within immediate reach of each service bay. We mount first aid kits, eye wash stations, and fire extinguishers at standard heights where technicians can find them quickly during emergencies. Tool carts with basic hand tools stay positioned beside each lift.
Clear signage throughout work zones and customer areas eliminates confusion about where people should go. Color-coded signs mark different service areas while directional arrows guide traffic flow. Simple visual cues help everyone navigate the shop efficiently without stopping to ask for directions.
Conclusion and Next Steps
Smart auto repair shop design transforms operations through strategic layouts that balance efficiency with customer comfort. Proper bay spacing, clear aisles, organized tool storage, and thoughtful waiting areas create the foundation for higher productivity and positive customer experiences. When we combine these elements with safety protocols and streamlined workflows, shops see measurable improvements in throughput, reduced downtime, and enhanced customer satisfaction.
Moving forward, we recommend a systematic approach to implementing these design principles. Start by auditing your current floor plan to identify bottlenecks and inefficiencies in workflow patterns. Confirm that service bays have adequate spacing with clear center aisles for safe vehicle movement. Stage safety equipment and mark emergency exits prominently throughout the facility. Refresh your waiting room with comfortable seating, professional color schemes, and clear signage that reinforces your brand while keeping customers informed.
Standardize bay setups so technicians can work efficiently with tools and parts staged within easy reach. Implement digital work orders and inventory systems with barcode scanning to eliminate manual tracking errors. Maximize vertical storage solutions to keep floor space clear and organized. Finally, plan for future growth by designating space for an EV bay and considering modular expansion options that can adapt as your business evolves.
