As general contractors serving developers and property owners, we at EB3 Construction understand the critical importance of building ADA compliant public restrooms. These facilities are designed and constructed in accordance with the Americans with Disabilities Act standards to ensure equal access and usability for people with disabilities. Far more than just checking boxes, ADA compliance demonstrates a genuine commitment to inclusivity and social responsibility.
When we build ADA compliant restrooms, we focus on specific design requirements for key elements like doorways, clear floor space, toilet stalls, sinks, and grab bars. The goal is to create spaces that are accessible and functional for all users, regardless of ability. This often means carefully considering details that many take for granted – the height of fixtures, the placement of dispensers, the force required to open doors.
While ADA compliance is legally mandated for public accommodations, we see it as an ethical imperative as well. By constructing truly accessible facilities, we help create public spaces that welcome and accommodate everyone. In an era of heightened awareness around disability rights, developers and property owners who prioritize accessibility position themselves as leaders in social responsibility.
Throughout this article, we’ll explore the key requirements and best practices for building ADA compliant public restrooms. We’ll cover everything from overall spatial layout to the nuanced specifications for individual fixtures and features. Our aim is to provide a comprehensive overview that will help you understand how to approach these critical spaces in your next construction project.
What Are the Required Fixture Specifications for ADA Compliant Restrooms?
When it comes to constructing ADA compliant restrooms, precise specifications for bathroom fixtures are essential to ensure accessibility for all users. We carefully adhere to these requirements to create restroom spaces that are fully compliant and usable.
For toilets, proper positioning is critical. We install toilets with the centerline 16-18 inches from the side wall. The seat height must be 17-19 inches measured from the floor to the top of the toilet seat. This height range allows for easier transfers from wheelchairs.
Grab bars play a vital role in providing support and stability. We mount grab bars securely at a height of 33-36 inches above the floor. The side grab bar must extend at least 42 inches in length, while the rear grab bar needs to be a minimum of 36 inches long. To ensure a firm grasp, we maintain a 1.5 inch clearance between the grab bar and the wall. Importantly, these grab bars are engineered and installed to withstand 250 pounds of force, providing reliable support for users.

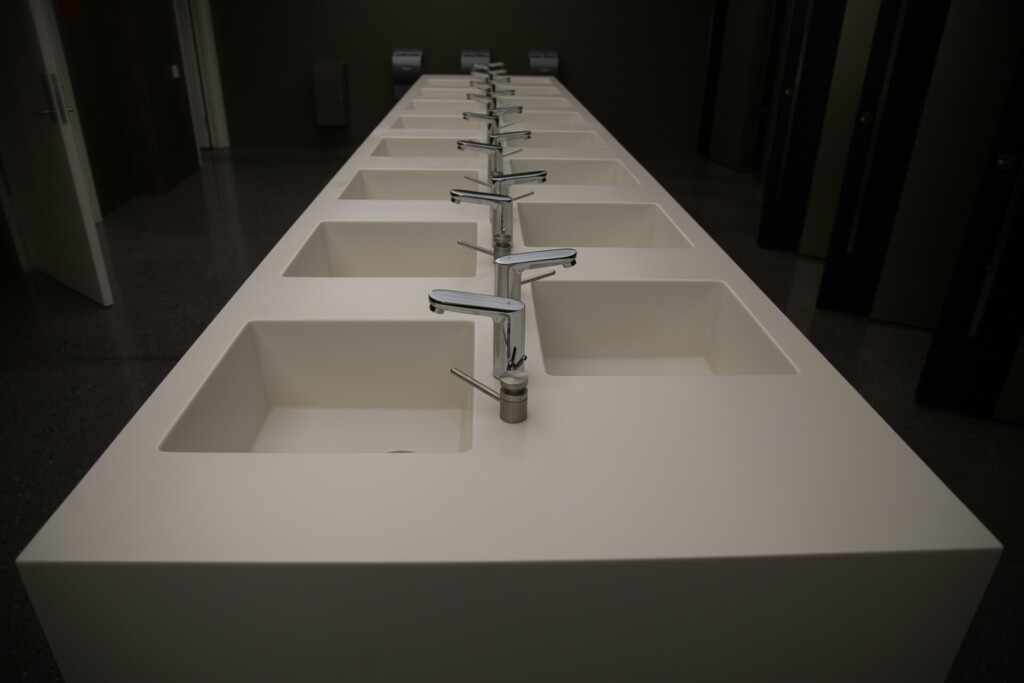

When it comes to sinks, height and knee clearance are key factors. We install sinks with rims no higher than 34 inches from the floor. Underneath, we ensure at least 27 inches of knee clearance to accommodate wheelchair users comfortably. This configuration allows for easy approach and use of the sink.
For restrooms with urinals, we adhere to a maximum rim height of 17 inches. This lower height improves accessibility for users with various mobility needs.
Across all fixtures, operable parts like flush controls must meet specific usability standards. We install controls that can be operated with one hand and require no more than 5 pounds of force to activate. This ensures that users with limited hand dexterity or strength can easily operate all necessary functions.
By meticulously following these specifications, we create restroom environments that are truly accessible to all users, regardless of their physical abilities. Our attention to these details reflects our commitment to inclusive design and ADA compliance in every project we undertake.
| Fixture | Specification |
|---|---|
| Toilet Centerline | 16–18 inches from side wall |
| Toilet Seat Height | 17–19 inches from floor |
| Grab Bar Height | 33–36 inches from floor |
| Side Grab Bar Length | 42 inches minimum |
| Rear Grab Bar Length | 36 inches minimum |
| Sink Rim Height | No higher than 34 inches |
| Knee Clearance Under Sink | At least 27 inches |
| Urinal Rim Height | Maximum 17 inches |
| Operable Parts Force | No more than 5 pounds |
While meeting these technical requirements is crucial, we also focus on the overall usability and flow of the restroom space. The precise placement of fixtures in relation to each other, coupled with sufficient clear floor space, creates an environment where users can navigate and utilize all amenities with ease and dignity.
As building codes and ADA guidelines occasionally update, we stay vigilant in monitoring any changes to ensure our restroom designs always meet or exceed the latest accessibility standards. This proactive approach allows us to deliver restroom facilities that are not only compliant but also forward-thinking in their design.
How Do Multi-User Restroom Requirements Differ from Single-User Facilities?
When we design multi-user restrooms, several additional ADA requirements come into play beyond those for single-user facilities. These specifications ensure accessibility for a diverse range of users in busier, shared bathroom spaces.
Wheelchair-Accessible Compartments
The cornerstone of multi-user restroom accessibility is the wheelchair-accessible toilet compartment. We must include at least one of these compartments, with precise dimensions to accommodate wheelchair users:
- Minimum width: 60 inches
- Minimum depth: 56 inches for wall-mounted toilets, 59 inches for floor-mounted models
These larger stalls provide the necessary space for wheelchair maneuvering and transfers. We also need to consider toe clearance – a often overlooked but crucial detail. Unless we enlarge the compartment further, partitions must provide 9 inches of height and 6 inches of depth for toe clearance. This allows wheelchair footrests to fit under the partitions, maximizing usable space.
Ambulatory Accessible Compartments
In restrooms with higher occupancy, we have an additional requirement. When six or more toilet compartments or a combination of six toilets and urinals are present, we must include an ambulatory accessible compartment. This narrower stall serves users who may need support from grab bars but don’t use wheelchairs. The dimensions for these compartments are:
- Width: 35-37 inches
- Depth: 60 inches minimum
Compartment Door Requirements
Accessibility extends to the compartment doors themselves. For both wheelchair and ambulatory accessible stalls, doors must:
- Be self-closing
- Have door pulls on both sides
- Not swing into the minimum required area of the compartment
These features ensure that users can easily enter, exit, and secure the compartment independently.
Urinal Accessibility
In men’s restrooms or unisex facilities with multiple urinals, at least one must meet ADA standards:
- Maximum rim height of 17 inches above the floor
- Minimum depth of 13.5 inches from the outer face of the urinal rim to the back of the fixture
This lower height and extended depth improve access for wheelchair users and those of shorter stature.
Clear Floor Space and Maneuvering
Multi-user restrooms require careful planning of clear floor spaces and turning radiuses. We must ensure there’s enough room for wheelchair users to navigate between fixtures and access all amenities. This often means providing more overall square footage compared to single-user facilities.
While these requirements may seem complex, they create restrooms that are truly accessible to a wide range of users. By carefully incorporating these elements into our designs, we ensure that multi-user facilities offer the same level of independence and dignity as single-user restrooms.
What Additional Elements Are Required for Complete ADA Compliance?
While proper fixtures and clearances form the foundation of an ADA-compliant bathroom, several additional elements are essential to ensure full accessibility and usability. We manage these details carefully to create truly inclusive spaces:
Signage
Clear, accessible signage is crucial. We install signs with raised tactile characters and Braille on the latch side of restroom doors, 48-60 inches above the floor. This placement allows easy identification for people with visual impairments.
Operable Parts
Dispensers, receptacles, and other operable parts require thoughtful placement. We position these elements within accessible reach ranges, typically 15-48 inches from the floor. Our team ensures they can be operated with one hand using no more than 5 pounds of force, accommodating users with limited dexterity or strength.
Toilet Paper Dispensers
Proper toilet paper dispenser placement is often overlooked but impacts usability significantly. We install these 7-9 inches from the front of the toilet, with the outlet between 15-48 inches above the floor for convenient access.
Pipe Insulation
Safety is paramount in accessible design. That’s why we insulate exposed pipes under sinks to prevent accidental scalding for wheelchair users or those with limited sensation.
Mirrors
Mirror placement requires careful consideration. For mirrors above counters, we ensure the bottom edge is no higher than 40 inches above the floor. When not above counters, we lower this to 35 inches maximum. This allows comfortable use for people of varying heights and those using wheelchairs.
Portable Facilities
For events using portable toilets, we advise clients that at least 5% in each cluster must be accessible. These units are clearly marked with the International Symbol of Accessibility to guide users.
By addressing these often-overlooked elements, we create bathrooms that truly meet the needs of all users. Our attention to these details ensures not just technical compliance, but genuine accessibility and inclusivity in the spaces we build.
Conclusion: Ensuring Accessible and Compliant Public Restroom Construction
Constructing ADA compliant public restrooms requires careful attention to dimensional requirements, fixture specifications, and additional elements that ensure accessibility for all users. By following these standards, we at EB3 Construction not only meet legal obligations but also create spaces that welcome and accommodate everyone. Properly designed accessible restrooms benefit people with mobility impairments, visual impairments, and cognitive disabilities by providing clear layouts, appropriate support features, and intuitive fixtures.
Going beyond minimum requirements whenever possible enhances usability and demonstrates a commitment to universal accessibility. As general contractors, we recognize that thoughtful design and precise execution of accessible restrooms contributes to more inclusive public spaces overall. Our expertise in coordinating the various technical aspects – from proper clearances to compliant hardware – results in facilities that are truly usable by all.
By partnering with EB3 Construction for your next construction project, you can feel confident that accessibility will be seamlessly integrated from initial design through final construction. Together, we can create restroom facilities that set the standard for both ADA compliance and user-friendly functionality. Contact us to discuss how we can help bring your accessible restroom vision to life.
