The foundation of a building is a crucial element in any construction project. It’s the unseen support beneath every structure, acting as the vital link between the building and the ground. This foundational layer transfers the weight of walls, floors, roofing systems, and occupants into the earth, ensuring stability for the entire structure above.
Often overlooked by those without expertise, foundations serve several essential purposes in construction. They spread concentrated loads across a broader area, preventing excessive settlement that might compromise structural integrity. Recent seismic events in California demonstrated that buildings with well-engineered foundations remained stable, whereas those with inadequate footings sustained significant damage, underscoring the foundation’s importance.
Foundations also provide a level platform for building. They protect against soil moisture intrusion and, particularly in places with shifting soil conditions like Texas clay deposits, must resist substantial movement forces that could otherwise damage a structure. Thus, the foundation is the literal and figurative bedrock of construction success.
What Are the Main Types of Building Foundations?
When starting a new construction project, one of our first critical decisions involves selecting the appropriate foundation system. We evaluate each site’s unique characteristics to determine whether a shallow or deep foundation will provide optimal structural support and long-term stability.
Shallow Foundations
We implement shallow foundations when the bearing soil near the surface has sufficient strength to support structural loads. These foundations typically extend no more than 1.5 meters into the ground and distribute building loads across a wider area.
For smaller residential and light commercial projects, we often utilize spread footings. These rectangular or square concrete pads effectively distribute column loads to prevent uneven settlement. Their straightforward installation makes them cost-effective for many standard building configurations.
When constructing on sites with consistent soil conditions, our teams frequently employ slab-on-grade foundations. This approach involves pouring a concrete slab directly onto a prepared ground surface, creating an integrated foundation and floor system. This method is particularly effective in regions with minimal frost penetration and stable soil conditions.
For larger structures with heavier loads, we may recommend mat (or raft) foundations. These continuous concrete slabs extend under the entire building footprint, distributing weight more evenly. Mat foundations are often specified when dealing with variable soil conditions or when differential settlement concerns exist.
Deep Foundations
When surface soils can’t adequately support structural loads, we extend foundations deeper to reach more competent bearing strata. Deep foundations, extending beyond 1.5 meters, allow us to transfer building loads to stronger soil layers or bedrock below problematic surface conditions.
Pile foundations are one of our most versatile deep foundation solutions. We drive or drill these slender structural elements into the ground until reaching adequate bearing capacity. The building loads transfer through the piles either through end bearing (resting on firm strata), skin friction (resistance along the pile’s length), or a combination of both mechanisms.
For particularly challenging sites, we sometimes utilize drilled shafts. These large-diameter concrete cylinders transfer extraordinarily heavy loads to competent bearing strata. Recent infrastructure upgrades across North America have increasingly relied on drilled shaft technology, especially for bridges and high-rise structures.
When building near water or requiring excavation below the water table, we may employ caissons. These watertight chambers allow our crews to work below groundwater levels, constructing foundation elements that would otherwise be impossible to build using conventional methods.
Foundation Selection Considerations
Our foundation design process considers several critical factors. Soil bearing capacity is perhaps the most fundamental consideration—we conduct thorough geotechnical investigations to determine the soil’s load-bearing capacity. Even soils that appear identical at the surface can have dramatically different load-bearing properties.
Structural requirements also dictate our foundation approach. We calculate anticipated dead loads (the building’s weight), live loads (occupants and furnishings), and environmental loads (wind, snow, seismic forces) to determine foundation specifications. A suburban office building requires different foundation solutions than a manufacturing facility with heavy equipment.
Environmental considerations significantly impact our foundation selection. The local frost line depth, groundwater conditions, and site drainage all factor into our design decisions. In regions experiencing freeze-thaw cycles, foundations must extend below the frost line to prevent seasonal movement and structural damage.
We also evaluate construction practicality and economics. While deep foundations provide superior support in challenging conditions, they typically require specialized equipment and expertise. Our value engineering process identifies the most cost-effective foundation system that meets all performance requirements without unnecessary complexity.
What Materials Are Used in Building Foundations?
At EB3 Construction, we consider material selection in foundation work as one of our critical initial decisions. Reinforced concrete is our primary choice for most commercial and residential projects. We typically specify 3,000-4,000 PSI concrete with engineered rebar configurations to ensure the structural integrity required for buildings to withstand time and weather.
The concrete-rebar combination is effective because concrete excels under compression, while steel reinforcement handles tension forces. This complementary relationship creates foundations capable of supporting massive loads while resisting lateral pressures from soil, water, and seismic activity. Following updates to building codes after Hurricane Ian, we’ve adapted our reinforcement patterns to build even more resilient structures.
Concrete Foundations: The Industry Standard
When we pour concrete foundations, we’re not merely using a common material; we’re deploying a system with specific performance characteristics. Mixture proportions significantly impact durability, with water-cement ratios directly affecting permeability and susceptibility to water infiltration. For projects in coastal areas with high water tables, we often add crystalline waterproofing agents to the concrete mix to enhance moisture resistance.
Beyond standard poured concrete, we increasingly use insulated concrete forms (ICFs) for foundation walls. These stay-in-place forms provide superior thermal insulation, reduce energy consumption, and offer structural benefits. The initial cost premium is usually offset by energy savings and faster construction, especially during winter months when concrete curing can be challenging.
Concrete block foundations remain viable alternatives when budgets are tight or site access limits ready-mix deliveries. Although not as inherently waterproof as poured concrete, modern sealants and proper drainage systems enable us to achieve excellent performance from block foundations.
Steel Foundations: Specialized Applications
For projects requiring exceptional stability or those on challenging sites, we sometimes recommend steel foundations. Helical piers and steel piles provide reliable support when soil conditions don’t suit traditional concrete. These systems transfer loads deep into the earth to reach stable bearing strata, making them ideal for waterfront projects or structures on previously disturbed soils.
The commercial construction industry has seen increased steel foundation use in high-rise developments, where deep systems must support extraordinary loads. We regularly collaborate with engineers to design hybrid foundation systems incorporating both concrete and steel for optimal performance.
Steel foundations also offer sustainability benefits, particularly for temporary structures or buildings designed for future relocation. Their potential for disassembly and reuse aligns with growing client interest in circular construction practices and reduced embodied carbon.
Alternative Foundation Materials
Though less common in our Texas projects, we occasionally use timber foundations for specific applications. Pressure-treated wood foundations can perform well in remote areas or where concrete delivery is impractical. Successful timber foundation installation hinges on proper chemical treatment and moisture protection systems. These foundations generally sit above grade level to minimize ground contact and potential deterioration.
Masonry foundations using stone or brick provide distinctive aesthetic appeal for historic renovations or architecturally significant structures. Working with these materials requires specialized expertise as they behave differently under load than monolithic concrete. We usually reinforce masonry foundations with steel ties and ensure proper drainage to prevent moisture accumulation and deterioration of mortar joints.
Across all material choices, our foundation systems include comprehensive waterproofing and drainage components. A foundation’s performance depends not just on structural integrity but also on its ability to manage water movement. Even the most robust concrete foundation will fail prematurely without proper drainage, especially in challenging climate conditions.
What Factors Influence Foundation Design and Selection?
At EB3 Construction, we understand that foundation work is crucial for every successful project. When assessing foundation options, our evaluation starts with the soil itself. We perform comprehensive soil testing to determine bearing capacity, which indicates the maximum weight per square foot the soil can support before failing. Clay, sand, silt, and gravel each present unique characteristics that necessitate specific design approaches.
Structural loads directly guide our foundation specifications. We calculate both dead loads (the permanent weight of the structure, including materials and fixed equipment) and live loads (the temporary forces from occupants, furniture, and weather events). This careful calculation prevents over-engineering while ensuring the building is adequately supported throughout its lifecycle.
Environmental Conditions Dictate Design Parameters
The local frost line depth greatly influences our foundation depth decisions. We always excavate below this line to prevent freeze-thaw cycles from causing heaving and structural damage. In regions with harsh winters, this often results in deeper foundations than similar structures in milder climates.
Groundwater presence receives particular attention in our design process. High water tables can compromise foundation integrity through hydrostatic pressure and moisture infiltration. We implement appropriate drainage systems, waterproofing measures, and sometimes specialized foundation types like mat foundations when groundwater challenges exist.
Seismic considerations have become increasingly important in our foundation designs. In earthquake-prone areas, we incorporate specific reinforcement configurations and connection details to help structures withstand lateral forces. These designs typically feature deeper footings, additional steel reinforcement, and special attention to the foundation-to-structure connection points.
Site-Specific Constraints Shape Solutions
Site topography presents unique challenges that directly impact our foundation approach. Sloped sites often require step foundations or retaining structures to manage soil pressure and prevent erosion. We carefully analyze slope stability before finalizing foundation designs for hillside construction.
Proximity to existing structures influences our foundation selection process in urban environments. When building near older structures with potentially fragile foundations, we often use specialized foundation systems that minimize vibration and soil disturbance. Techniques like helical piers or micropiles allow us to install foundations with minimal impact on adjacent properties.
Local building codes and zoning requirements establish the baseline parameters for all our foundation designs. We stay informed about code requirements across our service areas, ensuring our designs comply with minimum depth requirements, setbacks, and structural specifications. The 2021 updates to the International Building Code introduced several new foundation requirements that we’ve integrated into our standard practices.
Budget constraints always factor into our foundation decisions, but we prioritize long-term performance over initial cost savings. While deep foundations like piles typically cost more than shallow spread footings, they may be the only viable option for certain soil conditions. We provide transparent cost analyses that include both immediate construction expenses and potential long-term maintenance implications for each foundation option.
How Is a Building Foundation Constructed?
At EB3 Construction, we approach foundation construction as the critical initial phase of any successful building project. The stability of the entire structure depends on this underground component, so we meticulously execute every step of the process to ensure long-term structural integrity.
Site Selection and Initial Assessment
We begin by thoroughly evaluating the site’s soil conditions through geotechnical testing. This essential step reveals the soil’s bearing capacity, moisture content, and potential for expansion or settlement. Projects in areas with unstable soils, like those found in parts of Texas, require different approaches than those built on the bedrock common in the northeastern regions.
After assessment, we carefully mark the foundation layout according to architectural plans using batter boards, string lines, and precision surveying equipment. This ensures the foundation’s dimensions and elevations match exactly what’s specified in the blueprints.

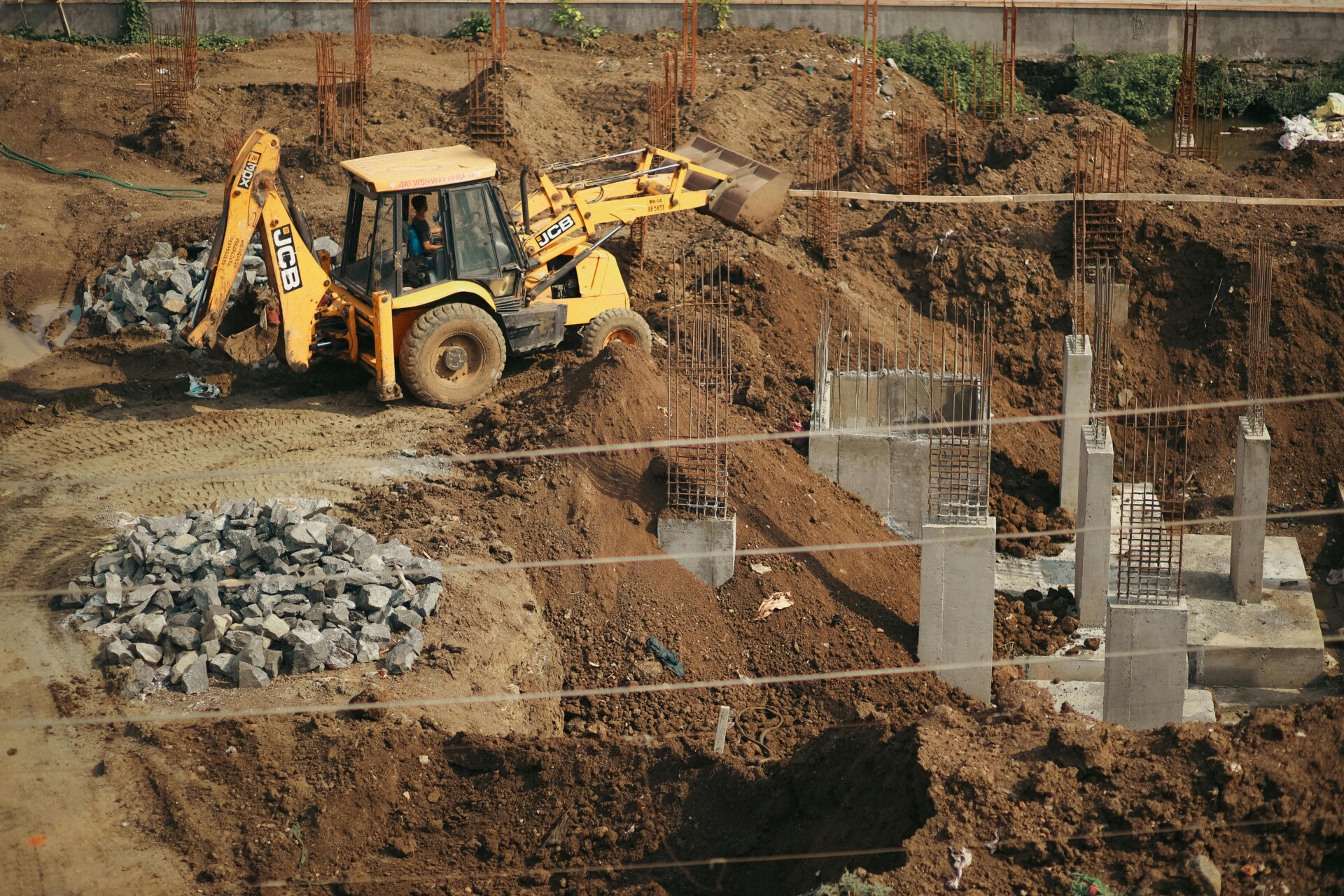

Excavation and Ground Preparation
Our excavation crews use specialized equipment to remove soil to the required depth, typically extending below the frost line in colder regions. For a standard residential foundation, we typically excavate between 3 and 8 feet deep, though commercial projects often require deeper excavations.
Once excavation is complete, we compact the soil using mechanical plate compactors or roller equipment. Proper compaction is essential—it prevents future settlement issues by increasing the soil’s density and load-bearing capacity. For sites with poor soil conditions, we might install additional drainage systems or bring in engineered fill to create a more stable base.
Formwork Construction
We construct formwork using high-quality plywood panels or prefabricated metal forms, braced securely to withstand the significant pressure of wet concrete. The formwork creates the exact shape of the foundation walls and footings, with precision that directly impacts the final product’s quality.
Proper form release agents are applied to the interior surfaces to prevent concrete adhesion and facilitate clean form removal later. The formwork stage requires exceptional attention to detail, as errors here will be permanently cast into the foundation.

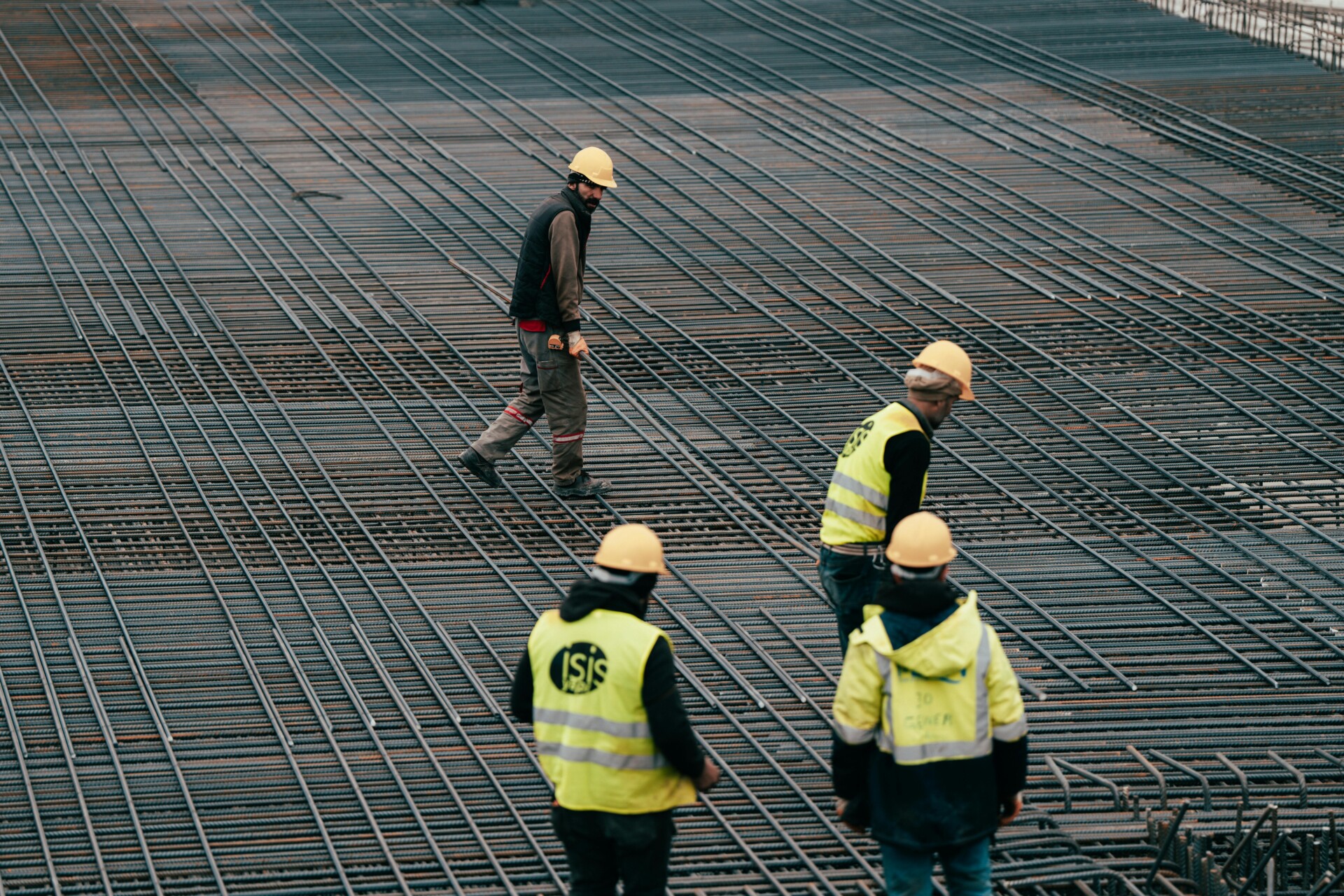

Reinforcement Installation
We place steel reinforcement bars (rebar) according to structural engineering specifications to provide tensile strength to the concrete foundation. The size, spacing, and configuration of rebar vary based on the foundation type and anticipated loads. For residential projects, we typically use #4 or #5 rebar (½ inch to ⅝ inch diameter) placed in a grid pattern.
Proper positioning of reinforcement is crucial—we use plastic chairs and spacers to hold the rebar at the correct height within the forms, ensuring adequate concrete coverage. All rebar intersections are secured with wire ties, creating a rigid cage that will remain embedded in the concrete.

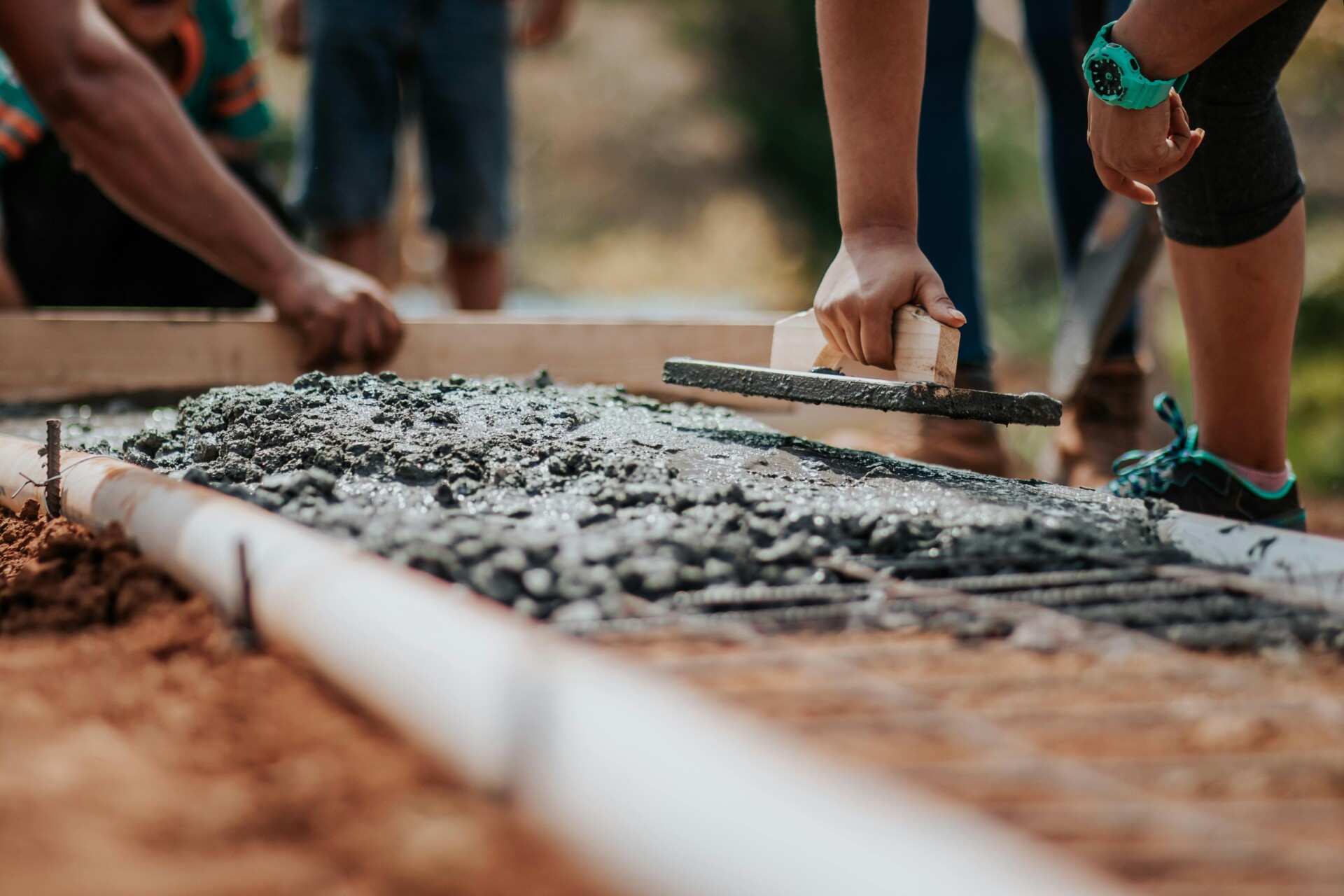

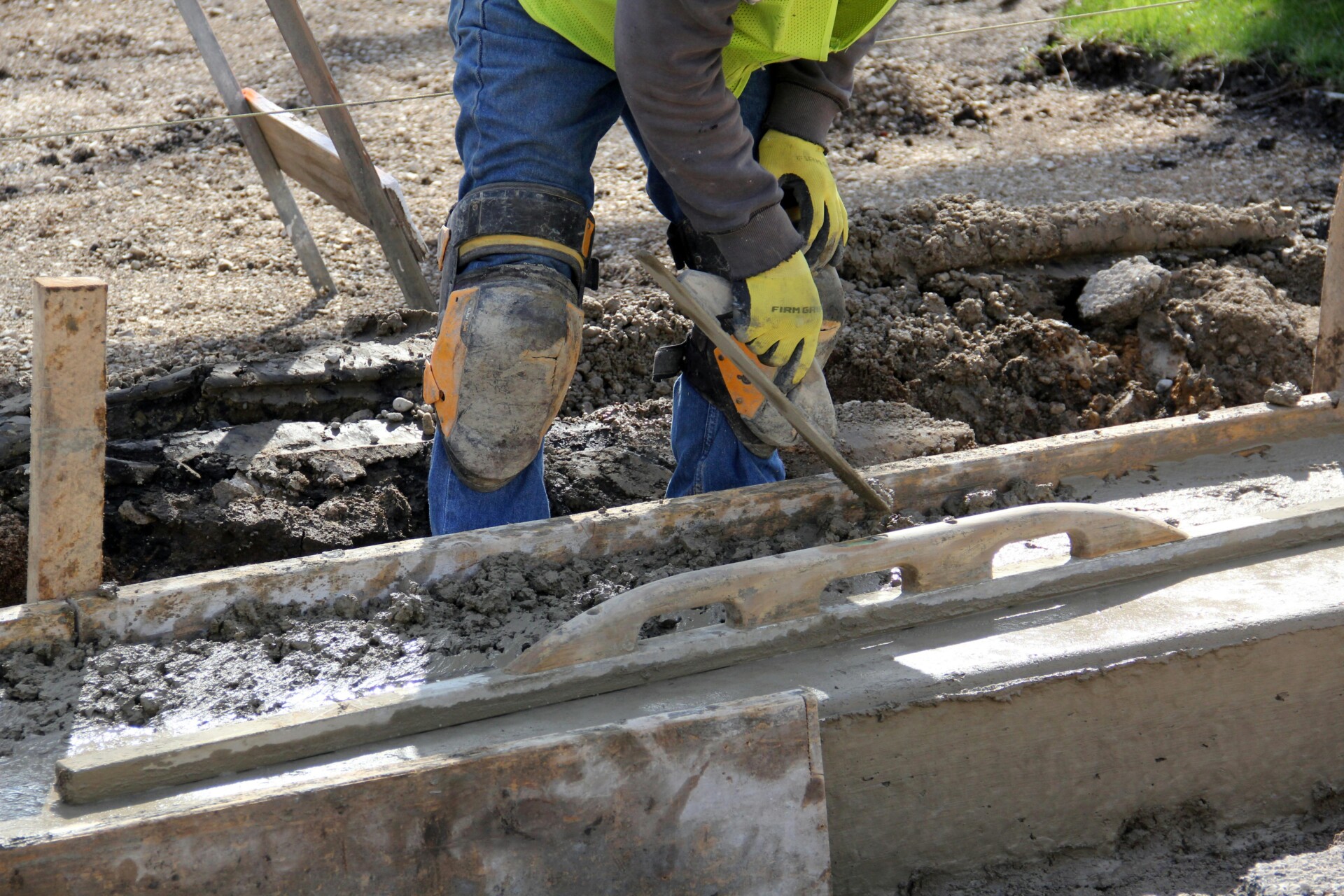

Concrete Pouring and Consolidation
Before pouring concrete, we coordinate closely with ready-mix suppliers to ensure the right mix design for the project’s specific requirements. Foundation concrete typically has a compressive strength between 3,000 and 4,000 PSI and includes specific water-to-cement ratios for durability.
During the pour, we use concrete pumps or direct chutes to place concrete in continuous lifts of 18–24 inches. Our crews use mechanical vibrators to consolidate the concrete, eliminating air pockets that could weaken the foundation. The timing of concrete placement is carefully planned around weather conditions, as extreme temperatures can affect curing and final strength.
Curing and Form Removal
After placement, we implement proper curing protocols, which typically involve keeping the concrete consistently moist for 5–7 days. This controlled moisture retention is crucial for achieving maximum strength and minimizing cracking. We may use water spraying, curing compounds, or moisture-retaining covers depending on the project conditions.
Forms are removed only after the concrete has gained sufficient strength, usually after 1–2 days for vertical surfaces. Our inspection team then examines the entire foundation for quality issues before backfilling operations begin.
Throughout this process, we maintain strict quality control measures, conducting testing at various stages to verify compliance with specifications. The foundation’s quality directly impacts every subsequent construction phase, which is why we approach this work with such precision and care.
Conclusion: Ensuring a Solid Foundation for Building Success
At EB3 Construction, we understand that the foundation is the cornerstone of every successful building project. This crucial element provides the stability and structural integrity necessary to support everything above it. Our experience has taught us that no aspect of construction requires more attention than the foundational work that initiates each project.
We approach foundation construction with meticulous planning and execution, knowing that proper investment at this stage prevents costly issues throughout the building’s lifecycle. From thorough soil analysis and site preparation to selecting suitable foundation types and materials, our teams integrate best practices at every step. By coordinating foundation work effectively, we are not only building a base for a structure but also establishing a framework for construction success and occupant safety for decades to come.
Ready to start your next construction project on solid ground? Contact EB3 Construction to discuss your foundation requirements.
