Retaining walls are essential structural elements in modern construction, functioning as engineered barriers that hold back soil and create level areas on challenging sloped sites. These robust structures act as silent guardians against the constant pressure of earth movement, particularly in areas with significant grade changes.
Primarily, retaining walls resist lateral earth pressure from surrounding soil or water. This resistance prevents downslope movement and material shifts that could compromise nearby structures or landscapes. When installed correctly, they transform hazardous or unusable sloped areas into valuable functional spaces for residential yards and commercial developments.
The importance of properly constructed retaining walls extends beyond basic soil management. They play a crucial role in comprehensive site development by controlling erosion, managing water runoff, and maximizing usable land in projects where every square foot is valuable. For property owners and developers dealing with challenging topography, these structures are not just a construction necessity but a foundation for site stability and long-term project success.
What Are the Different Types of Retaining Walls Used in Construction?
When we tackle sloped landscapes or need to create level building pads, retaining walls become essential components in our construction projects. Each type serves specific purposes based on site conditions, soil characteristics, and structural requirements we encounter in the field.
Gravity Retaining Walls
Gravity walls are the most straightforward approach in our construction toolkit. These structures rely on their substantial mass to resist lateral soil pressure. We typically build them using concrete blocks, stone, or brick, with a wide base that tapers toward the top for optimal stability.
During construction, we ensure proper drainage behind these walls to prevent hydrostatic pressure buildup. These walls perform exceptionally well for residential landscaping and small commercial applications where heights don’t exceed 10 feet. The California Department of Transportation often specifies gravity walls for highway embankments due to their durability and minimal maintenance requirements.
While simple in concept, gravity walls require significant material volume, making them less economical for taller applications. We generally recommend gravity walls when working with stable soils and where space allows for their substantial footprint.
Cantilever Retaining Walls
To maximize usable space while effectively retaining soil, cantilever walls are often our preferred solution. These reinforced concrete structures feature an L-shaped or T-shaped design, with a vertical stem and a horizontal base slab divided into heel and toe sections.
The engineering principle behind these walls is particularly elegant. We design them so the weight of the backfill soil above the heel section helps counteract the lateral pressure against the wall. This structural efficiency allows us to build cantilever walls up to 33 feet high while using less material than comparable gravity walls.
We frequently implement cantilever walls in urban developments where property lines limit available space. The recent commercial development in Boston’s Seaport District featured extensive cantilever wall systems to maximize building footprints while managing the challenging waterfront soil conditions.
Embedded Retaining Walls
For projects requiring deep excavations or with significant space constraints, we employ embedded retaining wall systems. These include sheet pile walls constructed from interlocking steel sheets and soldier pile walls utilizing steel H-sections with timber or concrete lagging.
When installing sheet pile walls, we drive the sheets deep into the ground, extending well below the excavation level. This depth creates passive resistance that counteracts the pressure from the retained soil. We often enhance these walls with ground anchors or tiebacks when working with loose soils or greater depths.
Sheet pile installations prove particularly valuable for waterfront construction where we need to create dry work areas. Their watertight joints make them ideal for cofferdams and temporary water diversion during bridge foundation construction. For permanent applications, we typically apply protective coatings to prevent corrosion and extend service life.
Reinforced Soil Retaining Walls
Mechanically Stabilized Earth (MSE) walls are among the most economical and versatile retaining wall systems in our construction practice. These walls incorporate geosynthetic reinforcement layers (typically geogrids) within compacted backfill to create a cohesive reinforced soil mass.
The facing elements can range from precast concrete panels to modular blocks or even vegetated facings for environmentally sensitive areas. We appreciate MSE walls for their flexibility in accommodating settlement without compromising structural integrity, making them ideal for sites with less-than-ideal soil conditions.
MSE walls have transformed highway construction, allowing us to build steeper embankments with smaller footprints. The Colorado Department of Transportation recently completed a major highway expansion project using MSE walls with locally sourced backfill, reducing material transportation costs by nearly 40% compared to conventional wall systems.
These walls typically require less skilled labor to install than cast-in-place concrete alternatives, helping us maintain tighter construction schedules even during labor shortages. Their modular nature also facilitates easier repairs if localized damage occurs during the structure’s lifespan.
Specialized Retaining Wall Systems
Beyond the four main categories, we occasionally implement specialized retaining wall systems for unique site challenges. Gabion walls, constructed from wire mesh baskets filled with rock, offer excellent drainage and natural aesthetics for erosion control applications. We recently installed gabion walls along a mountain road project where local stone availability made them the most cost-effective solution.
Soil nail walls combine in-situ soil reinforcement with shotcrete facing, allowing us to stabilize existing slopes without extensive excavation. This technique proved invaluable during an emergency landslide repair project last year, enabling us to restore roadway access within weeks rather than months.
For exceptionally tall retaining structures, we sometimes implement counterfort or buttressed walls. These modified cantilever walls include additional structural elements (counterforts) that extend from the wall face to the base slab, providing enhanced resistance to overturning forces. While more complex to construct, they allow us to achieve heights up to 40 feet with reinforced concrete construction.
What Materials Are Used for Retaining Wall Construction?
When building retaining walls for property development projects, material selection significantly impacts durability, aesthetics, and budget. At EB3 Construction, we help clients make informed choices by considering site conditions, load requirements, and design preferences. The construction material you select determines not only the look of your finished wall but also its structural integrity and longevity.
Concrete Options
Concrete remains one of the most versatile and durable materials for retaining wall construction. We implement concrete in two primary forms: poured-in-place applications for taller walls with significant load-bearing requirements, and precast blocks for more standardized installations. Cast-in-place concrete offers exceptional strength and design flexibility, allowing us to create customized solutions for challenging sites.
While concrete delivers unmatched structural performance, bare concrete walls often benefit from veneering or texturing to enhance visual appeal. The recent concrete shortage following pandemic-related supply chain disruptions has stabilized somewhat, but we still recommend planning concrete projects well in advance. A properly constructed concrete retaining wall can last over 40 years with minimal maintenance, making it a solid long-term investment despite higher initial costs.
For commercial properties facing strict engineering requirements, reinforced concrete often presents the most practical solution. We frequently incorporate drainage systems directly into concrete wall designs to manage hydrostatic pressure and prevent structural failures commonly seen in poorly designed walls.
Timber Retaining Walls
Timber offers a natural aesthetic and relatively straightforward installation process for smaller retaining walls up to four feet high. We typically use pressure-treated lumber for its resistance to moisture and insects, though even with treatment, timber has a shorter service life than masonry alternatives—generally 10-15 years depending on soil conditions and drainage quality.
The market volatility in lumber prices has somewhat stabilized since the 2021 peak, making timber more economically viable again for residential applications. For property owners seeking DIY-friendly options, timber presents fewer technical challenges than masonry construction. However, we caution clients that taller timber walls require proper engineering to prevent failure.
Many developers appreciate timber’s warm appearance in natural settings, particularly for garden terracing or transitional landscaping areas. When implementing timber retaining walls, we incorporate geotextile backing and proper drainage aggregate to maximize structural longevity and performance.

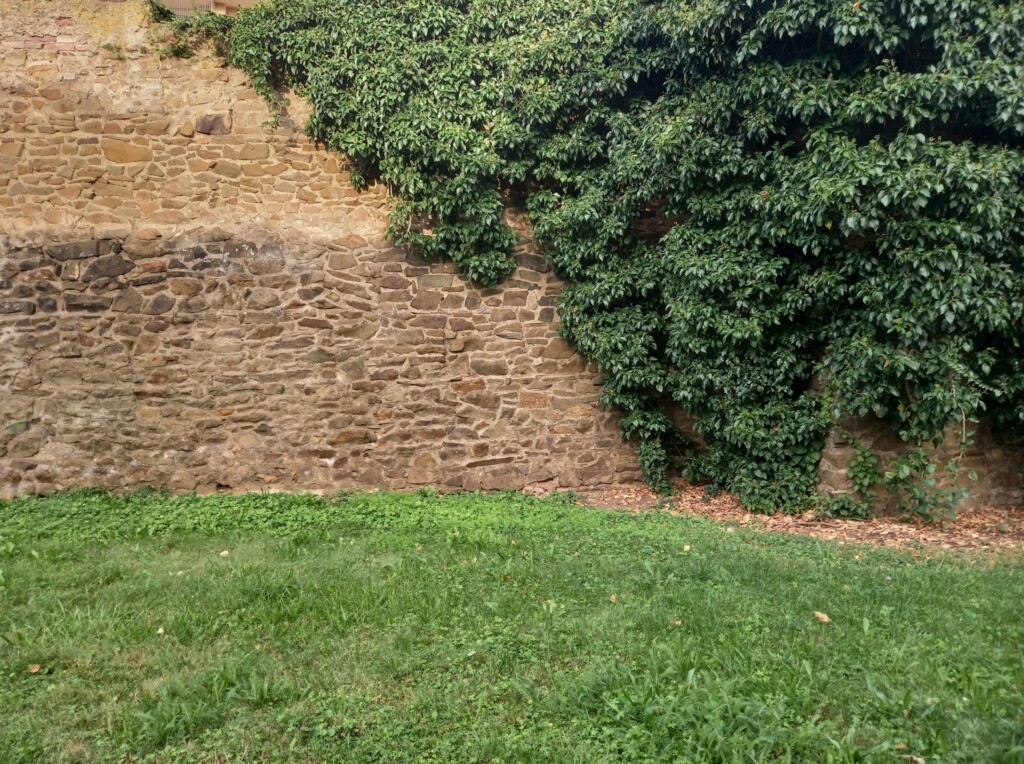

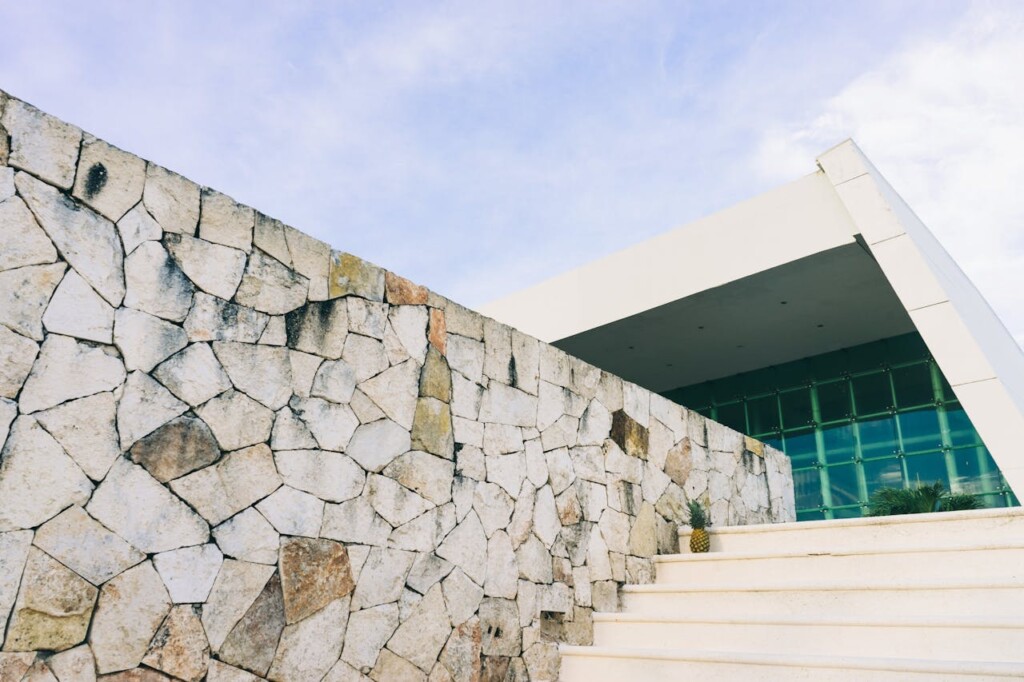

Stone and Brick Construction
Natural stone and brick retaining walls offer classic, aesthetically pleasing options that complement various architectural styles. These materials provide exceptional durability when properly installed, often lasting generations with minimal maintenance. The Pacific Northwest’s abundant natural stone resources give local projects access to distinctive regional materials like Columbia River basalt.
Stone and brick construction requires skilled masonry work, making labor costs significantly higher than other options. However, the results typically justify the investment for signature properties where appearance is paramount. For commercial developments seeking to create distinctive outdoor spaces, natural stone presents unmatched character and permanence.
We commonly construct two types of stone retaining walls: traditional mortared walls using cut stone and dry-stack walls that rely on gravity and friction rather than mortar. Dry-stack walls allow for some natural drainage through the face, which can be advantageous in areas with high groundwater levels.
Interlocking Concrete Block Systems
Segmented retaining wall systems using interlocking concrete blocks have transformed retaining wall construction in recent years. These engineered systems balance structural strength with relatively straightforward installation, making them increasingly popular for both commercial and residential applications. The modular nature of these systems allows us to create curved or tapered walls without cutting or modifying materials.
Most interlocking systems don’t require mortar, instead relying on their weight, setback design, and sometimes geo-grid reinforcement for stability. This construction method significantly reduces installation time compared to traditional masonry. Manufacturers continue to expand their offerings with various textures, colors, and block sizes to meet diverse aesthetic requirements.
For projects with height requirements exceeding four feet, we typically recommend geogrid reinforcement with interlocking systems. The grid extends into the backfill material, creating a reinforced soil mass that works in conjunction with the wall face. The recent code updates in Washington state have modified some of the engineering requirements for these systems, particularly regarding seismic considerations.
When selecting materials for your retaining wall project, we consider several critical factors: budget constraints, design life requirements, site accessibility, soil conditions, and visual compatibility with existing structures. By thoroughly analyzing these variables, we help clients select materials that balance performance, aesthetics, and cost-effectiveness for their specific site conditions.
What Design Considerations Are Critical for Retaining Wall Construction?
When we build retaining walls for our clients, we begin each project with a careful analysis of several critical design factors. These structures are not merely stacked materials—they are engineered systems designed to withstand significant forces over decades. Our experience has shown that addressing these key considerations during the design phase helps prevent costly failures and ensures long-term performance.
Understanding Lateral Earth Pressure
The primary force any retaining wall must resist is the lateral earth pressure from the soil behind it. We analyze this pressure carefully, knowing that if it exceeds what the wall can withstand, structural failure becomes inevitable. The pressure increases with depth, meaning the base of the wall experiences the greatest force.
When designing walls, we calculate three types of lateral earth pressure: pressure at rest (when the wall hasn’t moved), active pressure (the minimum pressure when the wall moves away from the backfill), and passive pressure (the maximum resistance when the wall moves into the soil). For embedded walls in basement construction, passive earth pressure is particularly important for stability calculations.
We implement proper battering techniques, ensuring walls lean into the hillside at a ratio of approximately 1 inch for every 12 inches of height. This counteracts pressure and significantly increases stability, especially for higher walls where forces multiply exponentially.
Groundwater Management and Drainage Systems
Groundwater mismanagement is the leading cause of retaining wall failures we encounter in the field. When soil behind a wall becomes saturated with water, it dramatically increases pressure and can lead to failures even in well-designed structures. Recent winter storms across California have provided clear examples of retaining wall failures primarily caused by inadequate drainage.
We install comprehensive drainage systems behind every wall we build. This typically includes a layer of free-draining gravel, landscape fabric to prevent soil from clogging the drainage material, and perforated drain pipes at the base to channel water away. For clay soils, which retain water and create higher pore pressures, we take extra precautions with more robust drainage solutions.
The drainage system must be designed to let water out but not in. We carefully position drains to intercept groundwater flow while ensuring they do not collect surface runoff that could saturate the backfill. Our drain installations maintain a proper slope—typically 1 inch for every 4 feet—to efficiently direct water away from the structure.
Ground-Bearing Capacity Assessment
Before construction begins, we thoroughly assess whether the ground below can support the weight of the retaining wall and the soil behind it. Inadequate bearing capacity can lead to settlement issues that compromise wall integrity. We have seen cases where properly built walls failed simply because the foundation soil couldn’t support the combined load.
For walls exceeding 4 feet in height or those in areas with poor soil conditions, we conduct geotechnical investigations to determine soil characteristics and bearing capacity. This may involve soil borings, penetration tests, or consulting with geotechnical engineers. When necessary, we improve bearing capacity through soil compaction, foundation replacement, or by designing wider footings that distribute the load over a larger area.
Ensuring Sufficient Sliding Resistance
Retaining walls must resist not only overturning but also horizontal sliding. We calculate the friction between the wall base and the underlying soil to ensure adequate sliding resistance. When natural friction is insufficient, we incorporate structural elements like concrete keys—downward extensions of the footing that project into the soil below—to increase passive resistance.
For timber walls exceeding 4 feet in height, we install deadmen anchors—horizontal timbers buried in the backfill and connected to the wall—typically placed every 8 feet along the wall. These anchors significantly increase sliding resistance by transferring forces deeper into the stable soil mass behind the wall.
With interlocking block systems, we often incorporate geogrid reinforcement layers that extend several feet into the backfill, creating a composite mass acting as a gravity system with much greater sliding resistance than the wall alone could provide.
Considering Climate and Site-Specific Factors
Climate conditions significantly influence our design decisions. In regions with freeze-thaw cycles, we extend foundations below the frost line or build them on well-drained gravel bases to prevent frost heaving. For areas with heavy seasonal rainfall, we increase drainage system capacity and may incorporate additional waterproofing measures.
Site constraints also shape our approach. Limited construction access might necessitate segmental block systems that can be installed without heavy equipment. Proximity to property lines or existing structures might require more compact designs like reinforced concrete cantilever walls rather than gravity systems with wider footprints.
By addressing these critical design considerations, we build retaining walls with service lives of 100 years or more. With high-quality materials and proper engineering, some of our walls achieve lifespans exceeding 120 years, providing generations of reliable performance for our clients’ properties.
What Are the Essential Building Techniques for Retaining Wall Construction?
At EB3 Construction, we approach retaining wall projects with precision and care. The success of these structures depends not just on design, but on meticulously executing foundational techniques that ensure long-term stability and performance. Let’s examine the critical construction methods we implement when building durable retaining walls for our clients’ properties.
Foundation Preparation: The Bedrock of Stability
We begin every retaining wall project by establishing a robust foundation. This crucial first step involves excavating to a depth that extends below the local frost line, typically 12-24 inches depending on your region’s climate conditions. A common mistake we often correct in remediation projects is insufficient foundation depth, which leads to seasonal shifting and premature wall failure.
Once excavation is complete, we create a level base using 4-6 inches of crushed stone or gravel, compacting it thoroughly with plate compactors to achieve maximum density. For walls exceeding 4 feet or supporting significant loads, we install reinforced concrete footings that distribute weight evenly and prevent settling. Recent updates in the California Building Code emphasize this foundation work as the most critical factor in retaining wall longevity.
The time invested in proper foundation preparation pays substantial dividends in wall performance. While it might represent 20-30% of our construction timeline, it prevents the most common structural issues we encounter in failed installations.
Backfilling Techniques: Creating Proper Support
Effective backfilling is where many retaining wall projects succeed or fail. We never reuse excavated native soil against the wall, as this typically contains clay that retains water and creates hydrostatic pressure. Instead, we implement a graduated backfill approach using specific materials for each zone behind the wall.
Directly behind the wall, we place a 12-inch layer of clean, angular drainage stone (typically ¾-inch). This creates a drainage column that allows water to move freely downward rather than pushing against the structure. Beyond this drainage zone, we carefully compact granular fill material in 6-8 inch lifts as the wall rises, using mechanical compactors to achieve proper density without overcompacting, which could damage the wall.
Grading the backfill area with a slight slope away from the wall (approximately 1 inch per foot) further enhances drainage performance. This combination of proper materials and methodical placement creates the invisible support system that maintains wall integrity through seasonal changes and weather events.
Wall Construction and Batter
When building the actual wall structure, we incorporate a slight backward lean called “batter” into every retaining wall we construct. This critical technique involves setting each course to lean into the hillside at approximately 1 inch for every 12 inches of height. This counteracts the natural forces that push outward against the wall face.
For block systems, we use the manufacturer-designed locking mechanisms or pins to create this batter automatically. For timber or natural stone walls, we carefully measure and adjust during construction. The compounding effect of proper batter throughout the wall height significantly increases resistance to soil pressure, particularly during freeze-thaw cycles or after heavy precipitation.
For walls exceeding 4 feet in height, we implement additional structural support systems such as deadmen anchors or geogrid reinforcement. These systems extend into the backfill material at predetermined heights, creating a unified mass that distributes pressure rather than concentrating it on the wall face. This integration of wall and soil creates a cohesive system rather than a simple barrier.
Drainage Systems: Preventing Failure
Water management is the most crucial aspect of successful retaining wall construction. We address drainage comprehensively, beginning with the installation of high-quality landscape fabric along the entire back face of the wall. This geotextile material prevents soil migration while allowing water to pass through freely, maintaining the integrity of our drainage column.
At the base of every wall, we install a perforated drainage pipe (typically 4-inch PVC) wrapped in filter fabric and surrounded by clean gravel. This pipe is sloped at least ¼ inch per foot and directs collected water to daylight points or connected drainage systems. For taller structures, we may incorporate additional drainage elements like chimney drains or horizontal drain pipes at various heights.
Surface water management complements our internal drainage system. We create proper grading at the top of the wall to direct runoff away from the structure and install swales or catch basins where needed to prevent water from flowing over the wall face, which can cause erosion and undermine stability.
The combination of these techniques creates retaining walls that perform reliably for decades, even under challenging conditions. While invisible once construction is complete, these methodical building practices determine whether a wall stands strong for generations or requires costly repairs after just a few seasons. By implementing these foundational techniques on every project, we ensure our clients receive structures that combine visual appeal with lasting structural integrity.
Conclusion: Keys to Successful Retaining Wall Construction
At EB3 Construction, we’ve learned that the longevity of retaining walls relies greatly on adhering to fundamental principles. Our experience in building walls across various conditions has shown us that success is not just about stacking materials—it’s about adopting a comprehensive approach that covers soil mechanics, drainage solutions, and structural integrity from the ground up.
When constructing retaining walls, we carefully match wall types to specific site requirements. For residential projects with limited height, we often use gravity walls that rely on their mass for stability. In spaces where there are constraints, we utilize cantilever designs with reinforced concrete stems and bases to transfer loads efficiently. Where cost-effectiveness is crucial without compromising structural integrity, we recommend reinforced soil systems that cooperate with the environment. Recent torrential rainfall events across the country have reinforced our commitment to proper drainage solutions as crucial for retaining wall longevity. Without adequate water management, even the most robust wall can eventually fail.
