Before breaking ground on a commercial garage project, developers need proper technical drawings that outline every detail from foundation to finish. Commercial garage construction plans serve as the blueprint for how these structures will be built, operated, and maintained over time.
These comprehensive plan sets detail parking bays, drive aisles, shop areas, office spaces, and essential support zones while incorporating modern construction methods like pre-engineered metal building systems. The drawings guide everything from initial site preparation through final occupancy, ensuring both functionality and code compliance throughout the construction process.
Which Layouts And Sizes Fit Common Commercial Uses?
Different commercial garage applications require specific dimensions and configurations to maximize operational efficiency. We coordinate with property owners to match building sizes with intended uses, from basic vehicle storage to full-service repair facilities.
30×40 Garage Layouts
The 30×40 configuration provides 1,200 square feet of clear space for smaller commercial operations. We typically see three-bay garage setups that accommodate standard passenger vehicles or work trucks. This footprint works well for basic auto shops where mechanics need workspace around each bay.
Drive-through options become particularly valuable in this size range. We position overhead doors on opposite ends, allowing vehicles to move straight through without backing maneuvers. This layout suits businesses that handle frequent vehicle turnover or need to move equipment efficiently.
30×50 Workshop And Storage Options
The additional 300 square feet in a 30×50 layout opens up four-car configurations or dedicated hobby auto shop setups. We often design these with a 2-bay carport or lean-to addition that provides covered storage for smaller equipment or customer vehicles waiting for service.
Modern four-car arrangements work particularly well for fleet maintenance or rental car facilities. The extra length allows for better workflow between service bays while maintaining clear circulation paths.
40×60 Commercial Auto Body Operations
At 2,400 square feet, the 40×60 garage handles serious commercial auto body shop requirements. We design these spaces to include six-car garage configurations with integrated office areas for customer service and administrative functions. The additional width accommodates larger vehicles and provides room for paint booths or specialized equipment.
Drive-through garage setups in this size work exceptionally well for high-volume operations. We can incorporate a shop with loft office space above, maximizing the vertical footprint for storage or administrative functions while keeping the main floor clear for vehicle work.
RV Garage Specifications
RV storage requires different dimensional considerations due to vehicle height and length. Our 30×40 RV garage plans typically include 14-foot minimum ceiling heights and integrate office and shop areas within the same structure. The office component handles customer interactions while the shop area provides space for maintenance supplies and tools.
For larger motorhomes, we recommend 30×60 motorhome bay configurations. These provide adequate clearance for Class A motorhomes while allowing space for utilities connections and basic maintenance access around the vehicles.
Layout Variations And Customizations
Lean-to carports extend the functional space without full building costs. We attach these to the main structure for additional covered parking or equipment storage. Workshop bays can be separated from vehicle storage areas, creating dedicated spaces for parts inventory and repair work.
Office integration varies based on business requirements, from simple customer waiting areas to full administrative suites. Loft office spaces maximize floor area utilization, particularly in areas where zoning restricts building footprints. Multi-bay door arrangements provide flexibility for different vehicle sizes and operational workflows within the same structure.
What Do Complete Plan Sets Include For Permitting And Buildability?
At EB3 Construction, we know that a complete plan set forms the backbone of any successful commercial garage project. These construction drawings provide the detailed roadmap needed for permitting approval and field execution.
The coversheet delivers your first impression to permitting officials. It features a rendering of the finished structure alongside basic project data like square footage, construction type, and building use classification.
Foundation plans detail the structural foundation system that supports the entire garage. We include wall thicknesses, joist sizes and spacing, column locations, and essential construction notes. These drawings specify footing dimensions, anchor bolt patterns, and reinforcement requirements that meet local soil conditions and load requirements.
Floor plans show the complete layout with precise dimensions throughout. Door and window sizes appear with their exact locations, while wall dimensions and ceiling height notes provide the framework for construction. We ensure proper circulation patterns and compliance with accessibility requirements in these detailed drawings.
Basic electrical layouts suggest switch, fixture, and outlet locations when applicable to the project scope. These drawings coordinate with the structural layout to show proper placement of electrical systems without compromising the building’s integrity.
Simple plumbing plans identify fixture locations for projects requiring water service or drainage systems. We coordinate these systems with the foundation design to ensure proper routing and support.
Interior elevations focus on built-ins and finish details for any conditioned office or shop spaces. These drawings specify millwork, storage systems, and interior finishes that integrate seamlessly with the structural components.
Exterior elevations present all four sides of the structure with complete material specifications. Roof pitches, ceiling heights, and door and window schedules provide the information needed for accurate material takeoffs and construction sequencing. Some plan sets include detailed window schedules and door specifications as separate callouts.
Construction details address specific connections and assemblies throughout the project. Trim profiles, handrails, built-ins, and other construction specifics ensure quality execution and code compliance. These details bridge the gap between general plans and field installation requirements.
Building sections reveal the relationships between foundation, wall, roof, floor, and stair systems. These cross-sectional views show vertical dimensions and structural connections that govern the construction process.
Stock plan sets vary significantly in their completeness and detail level. Some designers provide comprehensive packages while others focus on basic layouts that require additional engineering and detailing. We evaluate each plan set’s completeness before beginning construction to identify any gaps that need professional attention.
How Do Codes, Permits, And Engineering Affect Your Plans?
Stock plans conform to national standards like the International Building Code, but jurisdictional review often reveals gaps in local compliance. We routinely work with municipal building departments that require specific amendments for regional conditions or zoning requirements. Even plans stamped for one location may need modifications for another jurisdiction.
Local licensed engineers or architects become essential when plans require professional review and stamping. Most commercial garage projects trigger this requirement, especially when they include office space, multi-level configurations, or complex structural elements. The engineering stamp validates that plans meet both national codes and local building standards.
Environmental Load Factors Drive Design
Wind load, snow load, and seismic considerations dictate structural specifications and metal gauge requirements across different regions. Areas with high wind exposure demand heavier gauge steel and enhanced connection details. Snow load regions require increased roof slope and structural capacity to handle accumulated weight.
Seismic zones present additional complexity for commercial garage design. We coordinate with structural engineers to ensure foundation systems, framing connections, and lateral bracing meet seismic design standards. These requirements often drive up material costs and construction timelines but remain non-negotiable for code compliance.
Site conditions further influence engineering requirements. Poor soil conditions may require deeper foundations or soil improvement measures. Areas with high groundwater need enhanced drainage and waterproofing systems. Regional labor rates and construction practices also affect how quickly we can achieve compliance milestones.
Permit Costs And Review Processes
Permit fees typically range from $550 to $2,000 depending on project scope and jurisdictional requirements. Simple single-story garages fall toward the lower end, while multi-level commercial garages with complex systems approach the higher range. Some municipalities charge based on square footage, while others use construction value percentages.
Multi-level garage compliance faces stricter review processes and higher fees. These projects require detailed structural calculations, fire safety systems, and accessibility compliance documentation. Plan check timelines extend from weeks to months as building departments coordinate reviews across multiple disciplines.
We factor permit processing time into construction schedules, as delays at this stage affect the entire project timeline. Early coordination with local building departments helps identify potential issues before formal submission. This proactive approach prevents costly redesign work and schedule disruptions during the permit review phase.
What Are Realistic Cost Ranges And How Can You Control Budget?
Understanding cost per square foot helps us establish clear budget parameters for commercial garage projects. Current metal building prices typically range from $15 to $25 per square foot for kit materials alone. When we factor in full construction services, turnkey cost reaches approximately $24 to $43 per square foot, depending on project complexity and regional variables.
Construction labor represents a significant portion of the total investment, typically accounting for 40% to 50% of project costs. Regional labor rates can vary substantially, with some markets experiencing variations up to 60% above or below national averages. We coordinate with local crews who understand area-specific requirements and can work within established wage scales.
Core Cost Components
Metal building kit pricing forms the foundation of every commercial garage budget. At $15 to $25 per square foot, these packages include structural steel framing, wall panels, roof systems, and standard hardware. The concrete slab foundation adds approximately $4 to $8 per square foot, depending on local soil conditions and thickness requirements.
Construction and erection services typically cost $5 to $10 per square foot when contracted to experienced metal building crews. Permit fees generally range from $550 to $2,000, though complex multi-level structures or specialized automotive service facilities may require higher fees. We work closely with local building departments to ensure accurate fee estimates during the planning phase.
Additional Budget Variables

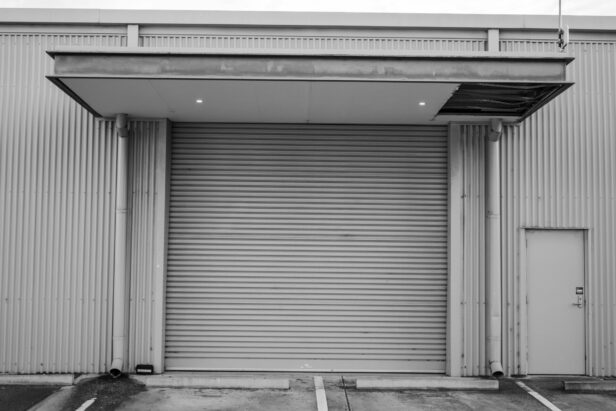

Several cost factors extend beyond basic construction elements. Delivery charges vary based on project location and building size, typically representing 4% to 7% of the total package price. Framed openings for overhead doors and personnel doors add material and labor costs that scale with the number and size of openings required.
Gutters and downspouts contribute to weather protection and can range from $3 to $15 per linear foot depending on material selection. Interior build-out costs fluctuate dramatically based on office space, restroom facilities, and specialized automotive equipment requirements. Basic electrical and plumbing rough-in work typically adds $2 to $6 per square foot for each trade.
Strategic Budget Control Methods
Selecting standard building dimensions significantly reduces both material and engineering costs. Popular sizes like 30×40 and 40×60 benefit from economies of scale and streamlined fabrication processes. Simple roof profiles such as single-slope at 1:12 pitch or gable roofs at 2:12 pitch minimize structural complexity and associated costs.
Limiting framed openings to essential doors and windows helps control material expenses while maintaining functionality. We recommend planning realistic building heights that accommodate intended vehicle clearances without unnecessary structural upgrades. When future expansion seems likely, specifying expandable end walls during initial construction proves more cost-effective than retrofitting later.
Change orders represent one of the largest budget risks in commercial construction. We encourage owners to finalize all requirements including electrical layouts, plumbing fixtures, and interior partition walls before fabrication begins. Off-season construction scheduling can yield labor savings in many regions, particularly during late fall and early spring months.
Obtaining multiple quotes from qualified contractors ensures competitive pricing while maintaining quality standards. Property owners with construction management experience may choose to self-perform general contracting tasks, potentially saving 10% to 20% in overhead costs. However, this approach requires significant time investment and construction knowledge.
Multi-level parking structures and high-specification commercial garages with specialized features can escalate costs well into the millions. These projects require extensive structural engineering, fire protection systems, and compliance with complex building codes that dramatically impact both timeline and budget considerations.
Conclusion and Next Steps
Successfully executing a commercial garage construction project requires careful planning and systematic coordination across multiple phases. Define the end use first, whether you need service bays for automotive work, office space for administration, RV storage capacity, or drive-through functionality for quick service operations. This fundamental decision shapes every subsequent choice in layout design, structural requirements, and permitting needs.
Shortlist a standard size and layout that aligns with your operational requirements and site constraints. Popular configurations like 30×40 or 40×60 structures offer proven efficiency in circulation planning and bay count optimization. These standard dimensions work well with pre-engineered metal building systems while providing flexibility for interior modifications. Consider traffic flow patterns, equipment placement, and future expansion possibilities when finalizing your layout selection.
Secure a complete plan set through qualified professionals and coordinate with local engineering firms for code compliance verification. Stock plans provide a starting point, but local conditions including wind loads, seismic requirements, and regional building codes often necessitate professional review and structural modifications. Early engagement with local authorities streamlines the permit process and prevents costly delays during construction phases.
Build a comprehensive budget using established cost ranges and realistic line items from material procurement through final inspections. Factor in metal building kit costs, site preparation, concrete work, and local labor rates when developing financial projections. Plan interior electrical systems, plumbing infrastructure, and finish work coordination with qualified local trades to ensure seamless project execution and regulatory compliance.
Ready to move forward with your commercial garage construction project? Contact EB3 Construction to discuss your specific requirements and develop a customized approach for your development.
